Perforated Metal

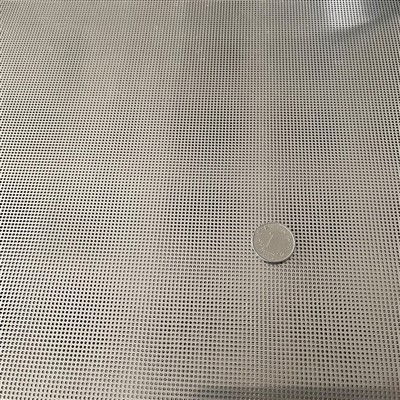

A: In standard CNC punching, the recommended minimum hole diameter is equal to or greater than the sheet thickness (D >= T) for carbon steel and aluminum, and D >= 1.2T for stainless steel. Attempting to punch holes smaller than sheet thickness drastically increases punch pin breakage and edge deformation. For applications requiring micro holes in thick plates, laser drilling or photo-chemical etching is recommended.

A: High open-area patterns (exceeding 40-50%) induce significant internal mechanical stress, causing the metal sheet to bow or edge-curl. We mitigate this by using multi-stage CNC tool indexing and passing every punched panel through automated multi-roll precision levelling machines to restore flatness within specified tolerances before shipment.

A: A 60 deg staggered pattern is the most common industrial standard, offering the highest structural strength, uniform stress distribution, and optimal open area ratio. Straight-line patterns align holes vertically and horizontally, providing lower overall structural rigidity but higher directional flow or distinct visual alignment for architectural grilles.

A: Specify whether you require standard margins (unperforated borders along sheet edges) or finished margins (exact blank borders specified on all four sides). Providing a CAD drawing (.DXF or .DWG) with explicit dimensions for width (W), length (L), side margins (M1, M2), and end margins (M3, M4) ensures proper tool alignment during CNC production.

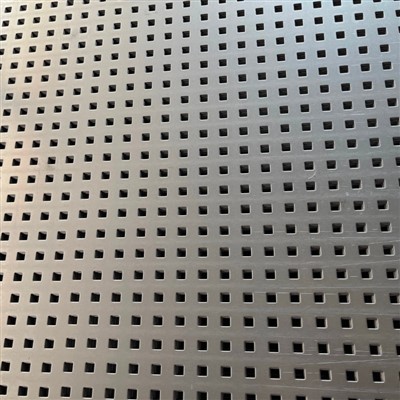

A: Pre-galvanized sheet cut edges and punched holes expose the base carbon steel. While zinc provides cathodic protection over small cut edges, severe outdoor environments require hot-dip galvanizing after punching (per ISO 1461) or post-punching powder coating to fully encapsulate all inner hole walls with protective coating.

A: Flat perforated sheets are stacked on reinforced wooden or steel pallets, wrapped in waterproof VCI anti-rust film, sandwiched between top and bottom protective corrugated boards, and secured with heavy-duty steel strapping and corner protectors. Loose sheets in LCL or FCL containers are fully crate-enclosed to prevent movement and moisture ingress.
