Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of aluminum standard expanded metal in China. Welcome to buy bulk durable aluminum standard expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.
Product Introduction

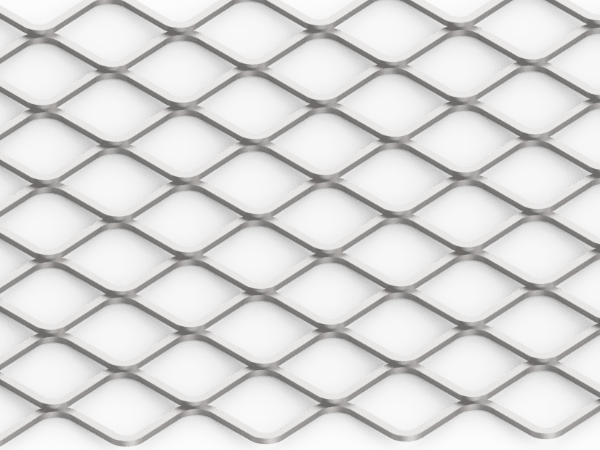

Aluminum expanded metal mesh is a versatile and high-performance material widely recognized for its exceptional properties derived from aluminum. As a lightweight material, aluminum offers significant advantages in applications where weight reduction is crucial, such as aerospace components and automotive parts, without compromising structural integrity. Its natural resistance to corrosion, thanks to the formation of a protective oxide layer, ensures long-term durability even in harsh environments, including coastal areas with high humidity and industrial settings prone to chemical exposure.
Moreover, aluminum expanded metal mesh boasts excellent thermal and electrical conductivity, making it ideal for heat dissipation systems and electrical enclosures. The unique expanded design, characterized by a uniform pattern of diamond-shaped openings, provides a perfect balance between strength and permeability, allowing for optimal airflow, light transmission, and visibility. This structural efficiency also contributes to cost-effectiveness, as the material maximizes coverage while minimizing material usage.
In terms of applications, this mesh finds extensive use in architectural facades and sunshades, where it combines aesthetic appeal with functional performance. It is also widely employed in filtration systems for its precision opening sizes, in security barriers due to its robust construction, and in automotive grilles for both protection and ventilation. Additionally, its malleability allows for easy customization into various shapes and sizes, catering to specific project requirements. Whether in industrial, commercial, or residential settings, aluminum expanded metal mesh stands out as a reliable, efficient, and adaptable solution.

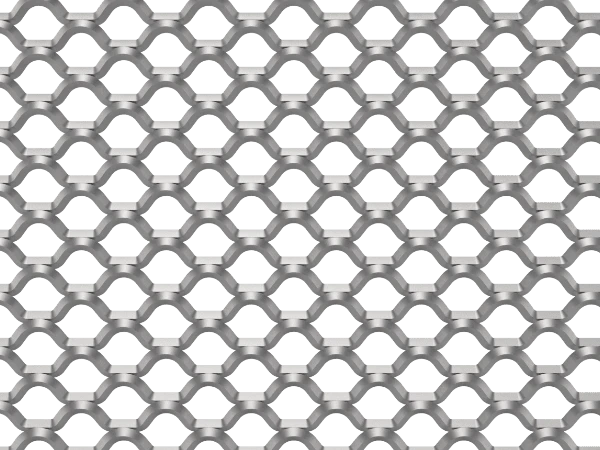

Hole Patterns
Moreover, we can develop new moulds according to customers' requirements and supply expanded metal products with custom hole patterns.
Product Specification
Specifications of Aluminum Standard Expanded Metal
|
Style |
Minimum Thickness (inches)A |
Nominal Weight in lbs./100 |
Design Size (inches)C |
Opening Size (inches)C |
Strand Size (inches) |
Overall Thickness (inches) |
Open Area |
|||
|
SWD |
LWD |
SWO |
LWO |
Width |
Thickness |
|||||
|
½"-.050 |
0.045 |
26 |
0.500 |
1.20 |
0.376 |
0.937 |
0.093 |
0.050 |
0.190 |
63% |
|
½"-.080 |
0.074 |
43 |
0.500 |
1.20 |
0.346 |
0.937 |
0.096 |
0.080 |
0.208 |
62% |
|
¾"-.050 |
0.045 |
17 |
0.923 |
2.00 |
0.786 |
1.750 |
0.109 |
0.050 |
0.219 |
76% |
|
¾"-.080 (Lt) |
0.074 |
31 |
0.923 |
2.00 |
0.741 |
1.680 |
0.129 |
0.080 |
0.268 |
72% |
|
¾"-.080(HVY) |
0.074 |
40 |
0.923 |
2.00 |
0.711 |
1.680 |
0.165 |
0.080 |
0.333 |
64% |
|
¾"-.125 |
0.118 |
64 |
0.923 |
2.00 |
0.667 |
1.680 |
0.169 |
0.125 |
0.359 |
63% |
|
1½"-.080 |
0.074 |
22 |
1.33 |
3.00 |
1.149 |
2.500 |
0.128 |
0.080 |
0.266 |
81% |
|
1½"-.125 |
0.118 |
43 |
1.33 |
3.00 |
1.080 |
2.500 |
0.162 |
0.125 |
0.346 |
76% |
|
A The minimum thickness is absolute, not subject to minus variation. |
||||||||||
Production Workflow
Raw material
We procure our steel plate raw materials from well-known manufacturers, including Baosteel and Shougang Group. All incoming materials undergo strict quality inspections, where our inspectors examine chemical composition, dimensions, and other key parameters to ensure compliance with established standards.
Stamping
We operate 4000 mm ultra-wide expanded metal production lines along with flattening and leveling machines. With over 1,000 self-developed precision expanded metal molds, we are capable of producing wide-format expanded metal to meet diverse customer requirements. Depending on the application scenario, we can select or design new mesh patterns to optimize load-bearing capacity, aesthetics, airflow, and shading performance.
Flattening
We operate a range of deep-processing equipment, including cutting, flattening, bending, and welding machines. This allows us to offer tailored manufacturing services for expanded metal products according to customers' precise specifications.
Leveling
Our company employs advanced leveling equipment to achieve a flat mesh surface, uniform openings, and excellent flatness tolerance. Supported by extensive experience and several CNC leveling machines, our technicians carefully adjust processing parameters and maintain strict quality control to ensure efficiency and product reliability.
Surface treatment
Our facility provides multiple surface finishing technologies such as galvanizing, powder coating, anodizing, and PVDF coating. These treatments ensure long-lasting durability while also delivering an attractive appearance for architectural decoration purposes.
Quality inspection
Our technicians perform real-time supervision during key production stages, including punching, flattening, shearing, and leveling. This approach allows us to check product quality at any time while identifying potential process improvements to further optimize production efficiency and product performance.
Packaging
We select suitable packaging materials according to the chemical and physical properties of the products, including waterproof, moisture-proof, and shock-resistant protection to ensure safe transportation. Customized packaging options can also be provided based on customer needs.
