Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of aluminum small hole expanded metal in China. Welcome to buy bulk durable aluminum small hole expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.
Product Introduction

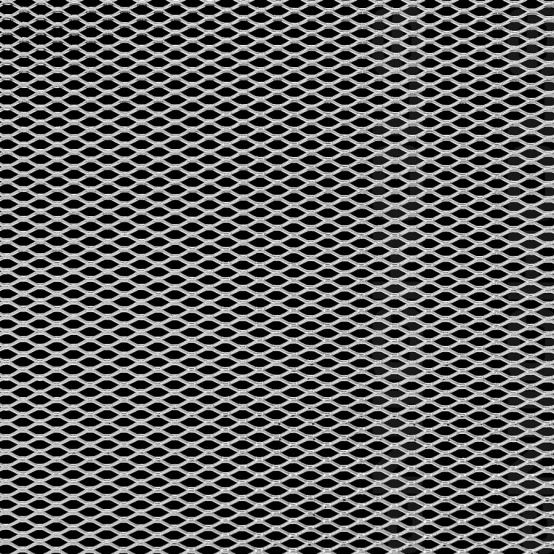

Aluminum small-hole expanded mesh is a lightweight, corrosion-resistant, and versatile metal mesh product. It is mainly made of high-quality 1050 pure aluminum or 3003 aluminum alloy - these two materials are widely recognized for their excellent corrosion resistance. They do not require additional coatings and can be used for a long time in various environments.
The production process follows strict precision manufacturing standards: first, high-quality aluminum plates undergo surface degreasing and annealing treatment, then are formed using custom molds through CNC precision stamping and stretching processes. This advanced manufacturing technology creates a small-hole structure with dense and evenly distributed apertures. The entire production process has no welded joints, ensuring that the mesh retains the inherent overall structural stability of aluminum while maintaining a smooth and flat surface.
This product is widely used in multiple fields. In the field of architectural decoration, it is suitable for making exquisite sunshades, interior and exterior decorative panels, ceilings, and ventilation curtain walls, especially in scenarios that have high requirements for fine surface texture and modern aesthetic design. In the field of filtration and screening, it can be made into precision filters for the food and beverage industry, air and liquid filters, as well as protective covers for precision electronics and audio equipment. In the professional industrial field, it can be used as lightweight shielding components, partitions in clean rooms and electronic manufacturing workshops, and is also suitable for producing industrial parts with strict requirements for spark-free characteristics. In the design and retail industries, it can be processed into display decorative panels, characteristic background walls, and various creative design components, giving full play to its excellent formability and smooth and delicate surface texture.
Hole Patterns
Diamond
Fan-shaped
Square
Round
Product Specification
Specifications of Galvanized Steel Small Hole Expanded Metal
|
Style |
Nominal Weight in lbs./100 Sq. Ft.A |
Design Size (inches)B |
Opening Size (inches)B |
Strand Size (inches) |
Overall Thickness (inches) |
Open Area |
|||
|
SWD |
LWD |
SWO |
LWO |
Width |
Thickness |
||||
|
3/32"-#24 |
56 |
0.140 |
0.240 |
0.084 |
0.135 |
0.040 |
0.024 |
0.083 |
43% |
|
1/8"-#24 |
52 |
0.150 |
0.300 |
0.094 |
0.155 |
0.040 |
0.024 |
0.083 |
47% |
|
3/16"-#24 |
26 |
0.190 |
0.500 |
0.145 |
0.375 |
0.034 |
0.018 |
0.069 |
64% |
|
3/16"-#24 |
49 |
0.200 |
0.500 |
0.136 |
0.325 |
0.050 |
0.024 |
0.101 |
50% |
|
3/16"-#24 |
72 |
0.210 |
0.500 |
0.131 |
0.308 |
0.060 |
0.031 |
0.122 |
43% |
|
1/4"-#24 |
51 |
0.250 |
0.670 |
0.180 |
0.473 |
0.050 |
0.031 |
0.104 |
60% |
|
A A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. |
|||||||||
Production Workflow
Raw material
Our company selects steel plate raw materials from reputable manufacturers such as Baosteel and Shougang Group. All incoming materials are thoroughly examined by our quality inspectors, who test chemical composition, dimensions, and other related indicators to ensure they meet or exceed quality standards.
Stamping
Equipped with 4000 mm ultra-wide expanded metal production machines as well as flattening and leveling equipment, our facility supports large-format manufacturing. We have independently created over 1,000 precision molds for expanded metal production. According to customer applications, we can develop or select suitable hole patterns to meet requirements for structural strength, visual appeal, ventilation, and sun protection.

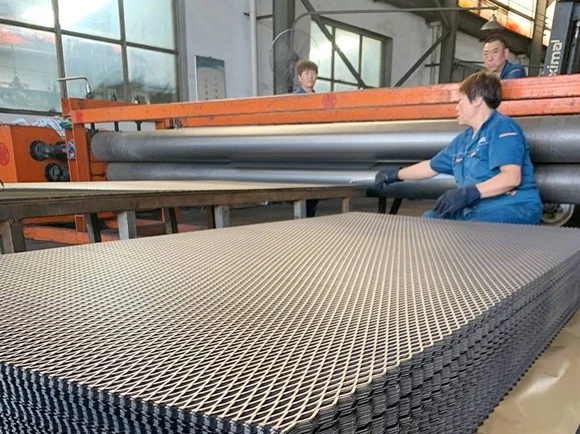

Flattening
Equipped with cutting, flattening, bending, and welding machines, our facility supports a full range of deep-processing services. We are capable of providing customized manufacturing solutions for expanded metal products.
Leveling
Our company operates precision leveling equipment to ensure smooth mesh surfaces and evenly shaped openings, with flatness tolerance meeting industry standards. Supported by extensive experience and advanced CNC leveling machines, our team ensures efficient processing and reliable product performance.
Surface treatment
Our expanded metal products can be treated with galvanizing, powder coating, anodizing, and PVDF coating technologies. These treatments enhance durability and provide an excellent visual effect for architectural and decorative applications.
Quality inspection
Our technicians oversee critical production steps such as punching, flattening, shearing, and leveling through real-time monitoring. This allows us to maintain strict quality standards while continually improving our production processes.
Packaging
Our packaging methods are designed based on the chemical and physical properties of the products. Waterproof, moisture-resistant, and protective materials are used to safeguard products from damage during shipping. Customized packaging is also available.
